Curing Pen X - Ultralight / Bluetooth / Caries detection / 8 modes

The Curing Pen X is an advanced, intelligently controlled wireless LED curing light designed for effortless dental operation. It offers a wide light spectrum of 380–515 nm with a maximum intensity of up to ~3000 mW/cm² , which ensures fast and uniform curing of materials. The lightweight, ergonomic handle (approx. 65 g) with an ultra-thin 8 mm head that rotates 360 ° allows easy access even to the back teeth.  The integrated 2-inch display, touch controls, and charging base with a built-in light meter make it a modern and highly efficient curing solution.

The device has intelligent Bluetooth control, a 2″ color screen and up to 8 operating modes (including ramp, pulse, ortho, detect in two wavelengths), which allows for flexibility in adapting to the type of treatment.

The charging station includes a built-in light meter , helping to control the quality of exposure during clinical work.

Description:

• 10W LED
• exposure time (for material about 2 mm thick) is only 3 seconds
• light intensity: from 1200mW/cm2 to ~ 30000mW/cm2 (depending on the mode)
• beam length: broad spectrum 385nm~515nm
• 3 diodes intended for exposure
• 2 detection modes :
  • purple light - defect detection, illuminated in orange-red
  • white light - used with a magnetic cover to detect enamel cracks
• clear LED display with detailed information about the operation
• narrow optical fiber with diodes placed perpendicular to the handle
• with included charger and built-in battery
• battery capacity 1600 mAh
• clear LED display with detailed information about the work, supported by Bluetooth technology
• ergonomic shape, with smooth finishes

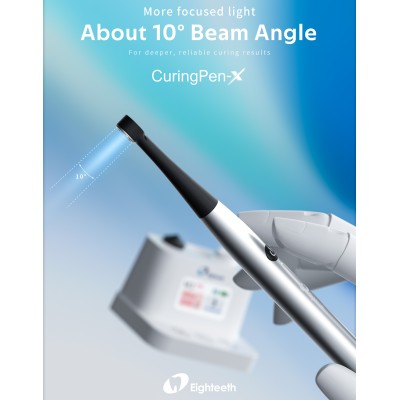

• beam angle: ~10°
• built-in light intensity meter for testing - in the base station
• stable and intense light regardless of the battery charge level

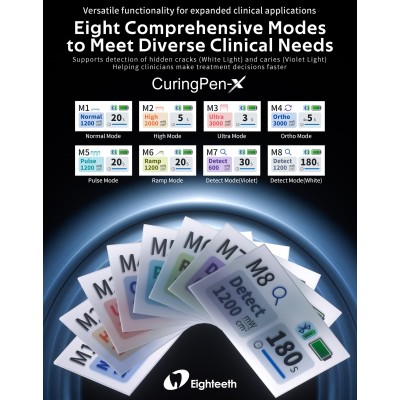

• 8 operating modes:
  • normal - 1200 mW/cm2 - during: 5, 10, 15, 20, 40 seconds
  • fast (high) - 2000 mW/cm2 - in time: 3, 5, 10 seconds
  • ultra - 3000 mW/cm2 - in time: 1.3 seconds
  • ortho (ortho) - 3000 mW/cm2 - in cycles: 3s on/2s off in cycles 3, 5, 8 times
  • Pulse - 1200 mW/cm2 - in cycles: 0.8s on/0.2s off during 5, 10, 15, 20 seconds
  • ramp - 1200 mW/cm2 - in time: 5, 10, 15, 20 seconds
  • defect detection mode - 600mW/cm2 - times: 30, 60 seconds
  • damage and crack detection mode - 1200 mW/cm2 - times: 60, 180, 300 seconds
• handle dimensions: 17x17x210mm

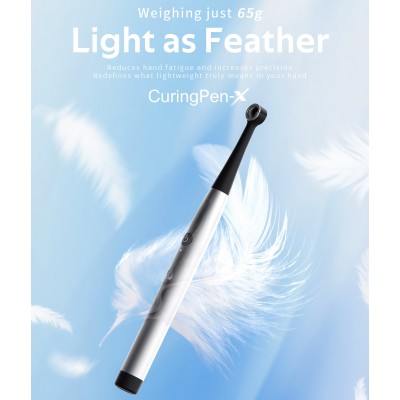

• handle weight: 65g
• Charging: 2 hours to fully charge the handle, 4 hours to fully charge the base station
• base station, allows for 2 full charges of the handle
• Bluetooth module range - 5m

Box includes:

• Handpiece
• Light source head
• Base
• Protective light shield
• Magnetic head
• Power adapter
• 100 Disposable sleeves
• User Manual

User manual:

Download
