Gutta Percha Removal spear by YDM

YDM GP Remover Spear

In root canal re-treatment, old gutta percha must be removed. After softening with ultrasonics, the YDM GP Remover Spear removes it cleanly and precisely. The tip's shape is tiny with 360 degrees of cutting edges, making it easy to reach and engage the target point from any angle without needing to reposition. It can also be used as a finalising remover after rotary file re-treatment (Re Treaty by StyleItaliano Endodontics).

Choose your preferred handle diameter and tip size from the options below. The handle is supplied in a Double End configuration, letting you keep two tip sizes ready in one instrument.

Key Features

• 360° cutting edge tip design — reaches the target point from any angle without repositioning
• Double End handle — two working ends in one instrument (interchangeable)
• 2 tip functions: Single (suitable for scraping off) and Double (suitable for scraping out)
• 3 tip diameters available: 0.3mm, 0.5mm, 0.7mm
• 2 tip lengths available: 21mm (S) and 28mm (L)
• Replaceable tips — swap sizes on the same reusable handle
• Made in Japan by YDM Corporation
• Each tip size is clearly marked for easy identification

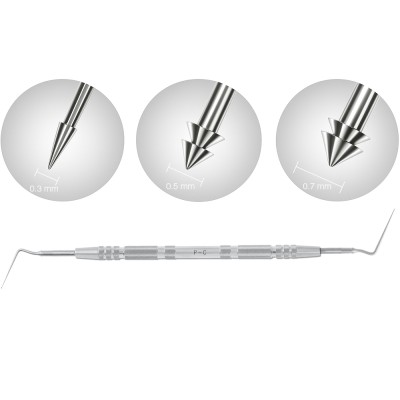

Handle (Double End)

Lenght 107mm, ø6.0mm.

Tip Options

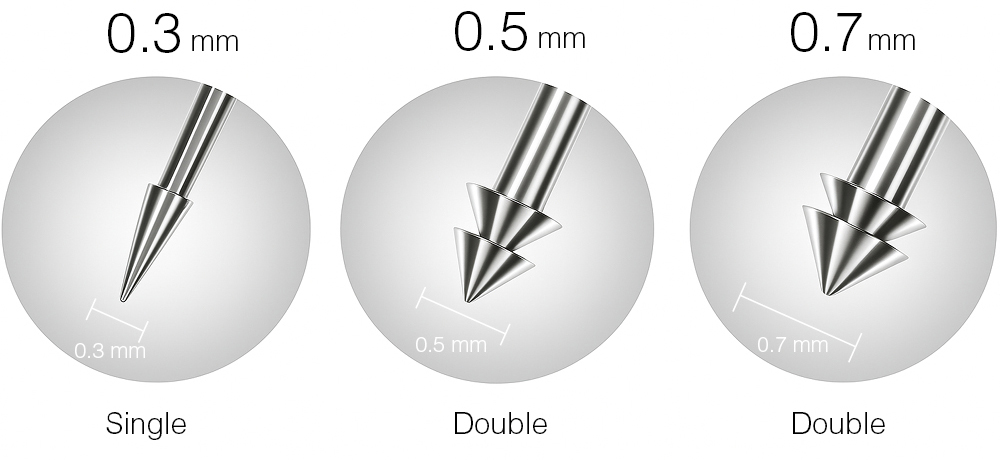

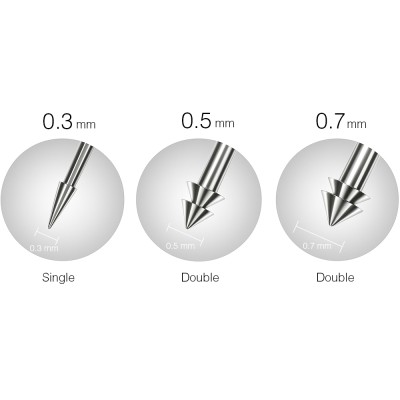

Choose from 3 different types and 2 different length:

Target area:

0.3 mm: near apical

0.5 mm: middle of root canal

0.7 mm: entrance of root canal

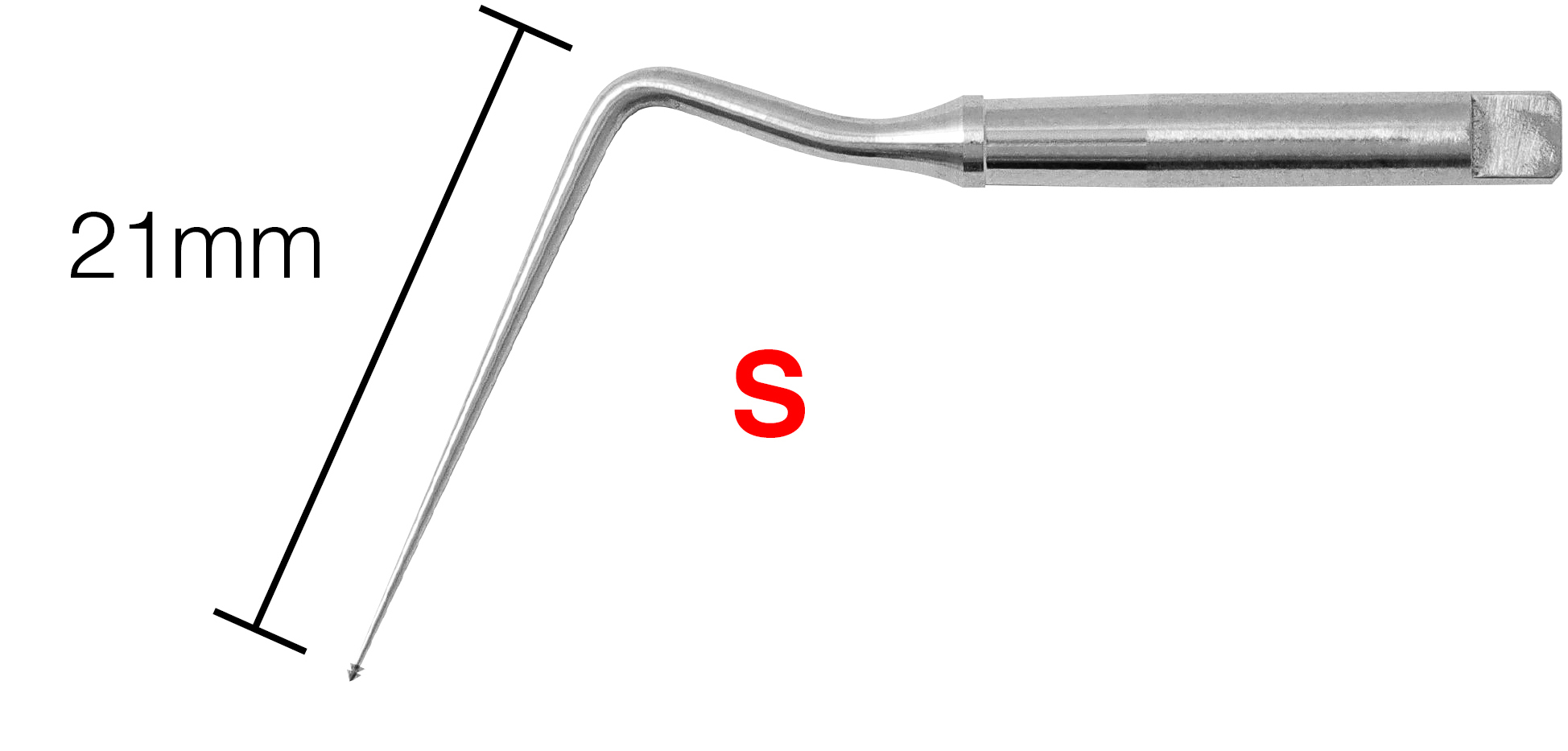

S version: Length 21 mm (for posterior)

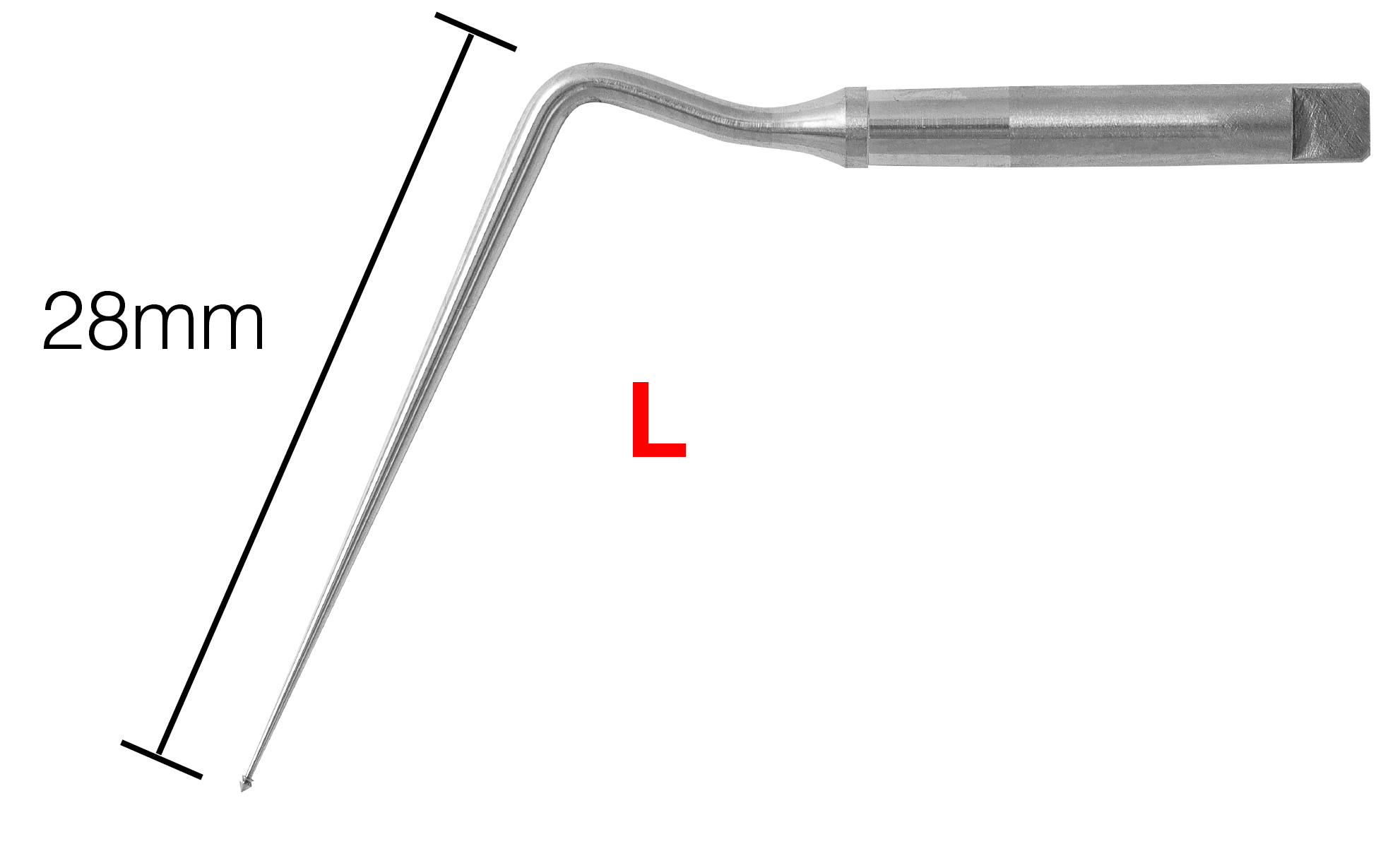

L version: Length 28 mm (for anterior)

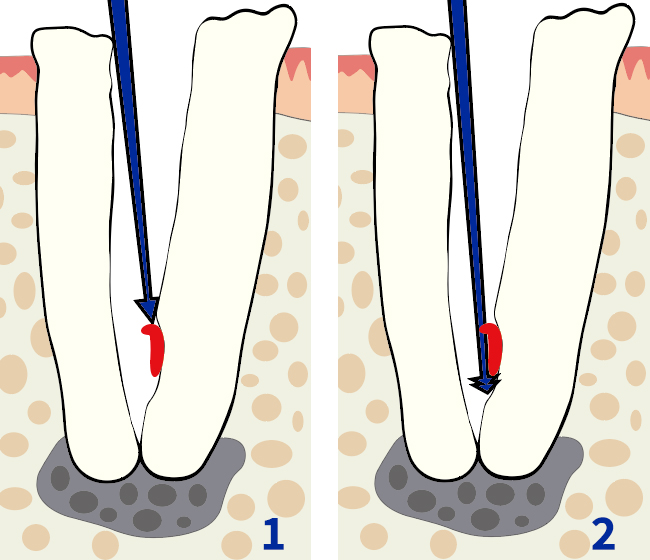

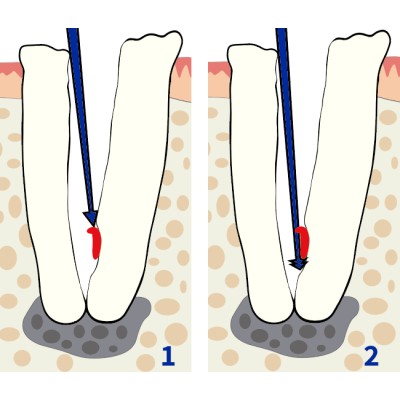

Suitable for scrape off the gutta-percha (1). With its very tiny tip it is easy to reach the desired target area. Suitable for scrape out (2). With it's tip with 360° edge it easy to crape out gutta-percha.

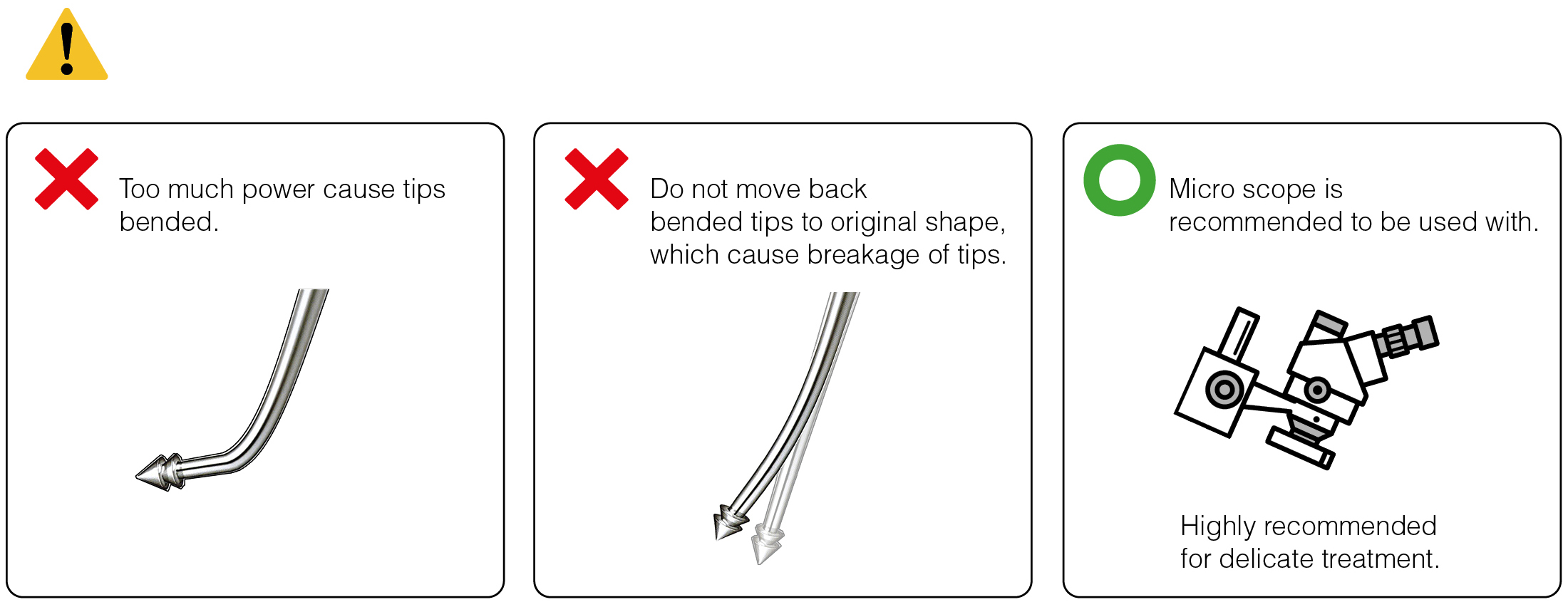

How to Use

• Use with less power than you would use holding a ball-point pen — this is a delicate instrument, not a forceful one
• Too much power will cause the tip to bend. Do not attempt to bend a bent tip back to its original shape, as this will cause breakage
• Use of a microscope is recommended alongside this instrument
• Remove the tip from the handle before sterilisation and disinfection
• Highly recommended for delicate re-treatment procedures

Who Is the GP Remover Spear For?

The GP Remover Spear suits clinicians carrying out root canal re-treatment who need a precise, low-force method of removing softened old gutta percha, particularly under magnification. The Double End handle and full range of tip diameters and lengths allow the instrument to be matched to canal anatomy and access, with two working sizes always to hand.

For more information please see YDM's official GP Remover Spear datasheet: Download PDF

Full YDM Endodontics catalogue: Download PDF

Frequently Asked Questions

What is the YDM GP Remover Spear used for?

It's used in root canal re-treatment to remove old gutta percha after it has been softened with ultrasonics, and can also be used as a finalising remover after rotary file re-treatment.

What handle option is available?

The handle is supplied in a Double End configuration, with ø6.0mm diameter and in 107mm length.

What tip diameters and lengths are available?

Tips are available in 0.3mm, 0.5mm, and 0.7mm diameters, each in 21mm (S) or 28mm (L) lengths.

What's the difference between Single and Double tip shapes?

The 0.3mm tip has a Single shape, suitable for scraping off material. The 0.5mm and 0.7mm tips have a Double shape, suitable for scraping material out.

How much force should be used with this instrument?

Less force than holding a ball-point pen. Too much power will bend the tip, and a bent tip should never be straightened back, as this risks breakage.

Is a microscope required to use this instrument?

A microscope is recommended when using the GP Remover Spear, particularly for delicate treatment.
