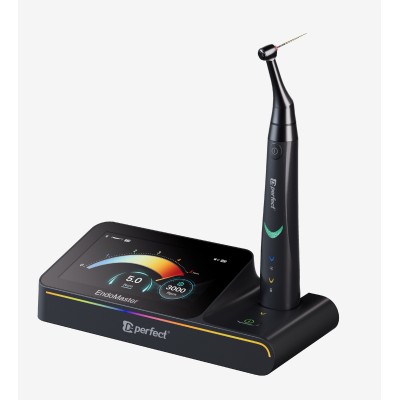

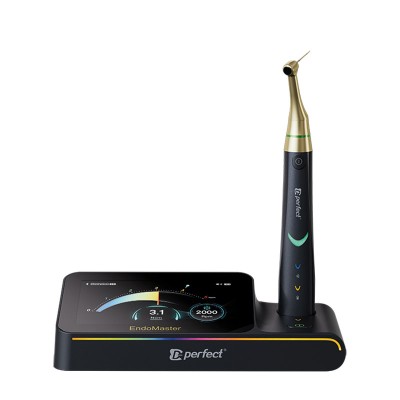

EndoMaster Cordless Endodontic Motor with Integrated Apex Locator (6:1 Handpiece)

EndoMaster Cordless Endodontic Motor & Apex Locator

The EndoMaster is an intelligent, all-in-one root canal motor with an integrated apex locator, combining shaping and root length measurement in a single device. Its lightweight, cordless handpiece and intuitive touch-screen interface make it easy to adopt for clinicians of any experience level, while its high-performance brushless motor (up to 3000 RPM) delivers the torque control demanded by modern rotary and reciprocating file systems.

Key Features

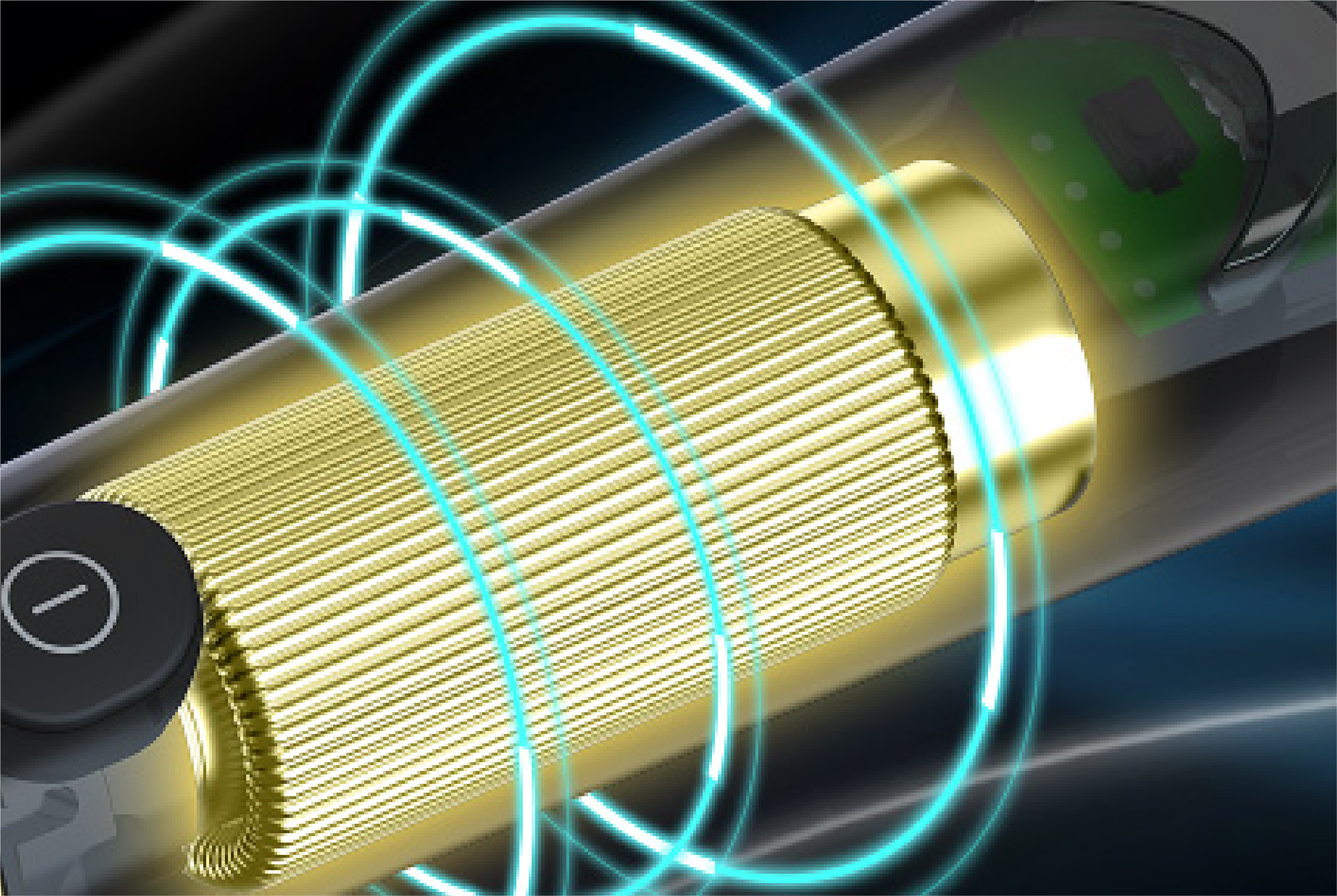

• High-speed brushless motor — high torque, swift response and precise output for efficient canal preparation
• Integrated apex locator — combined shaping, measurement, and combined mode in one unit

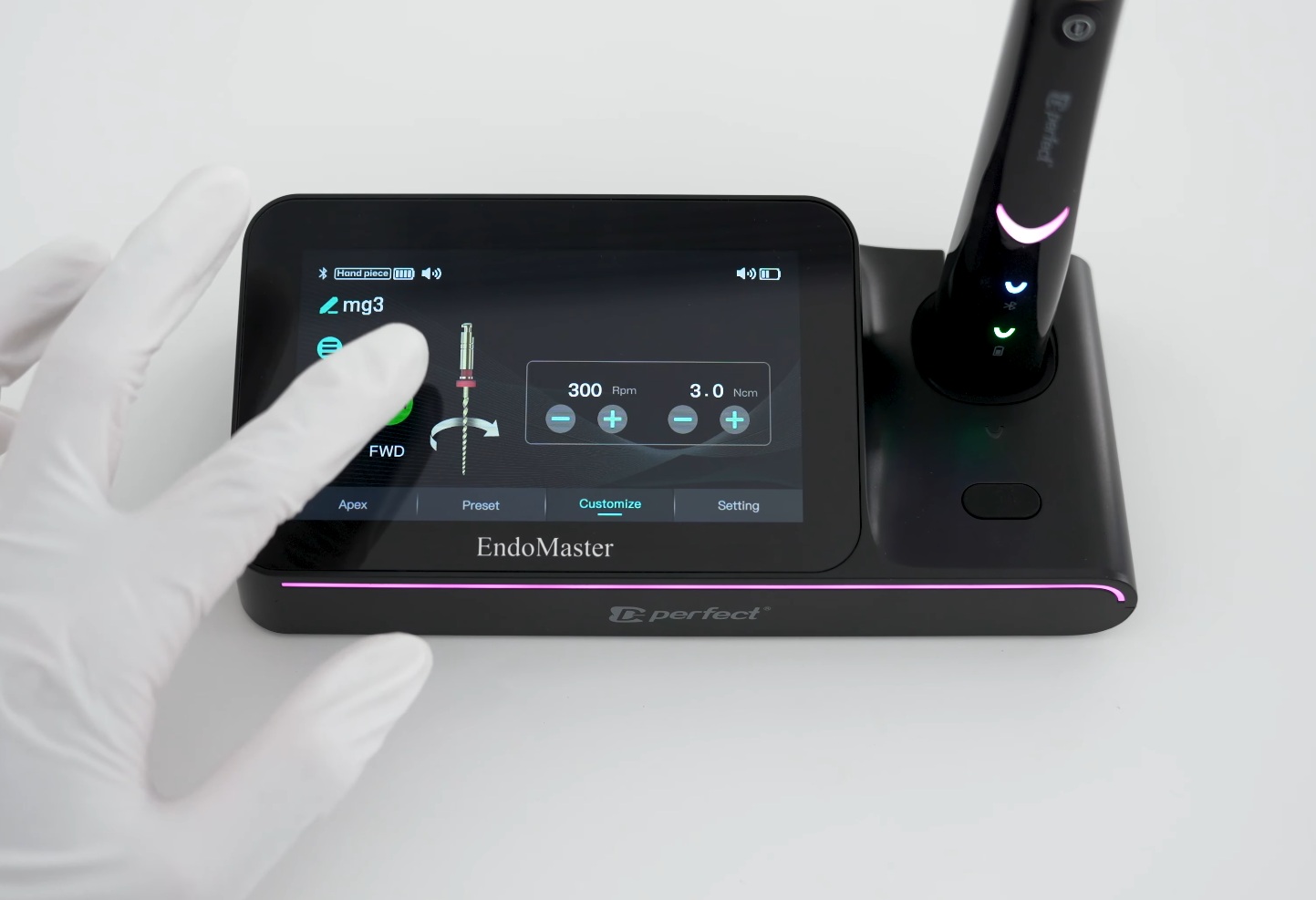

• 5.0" IPS touch screen — bright, clear display with intuitive touch control

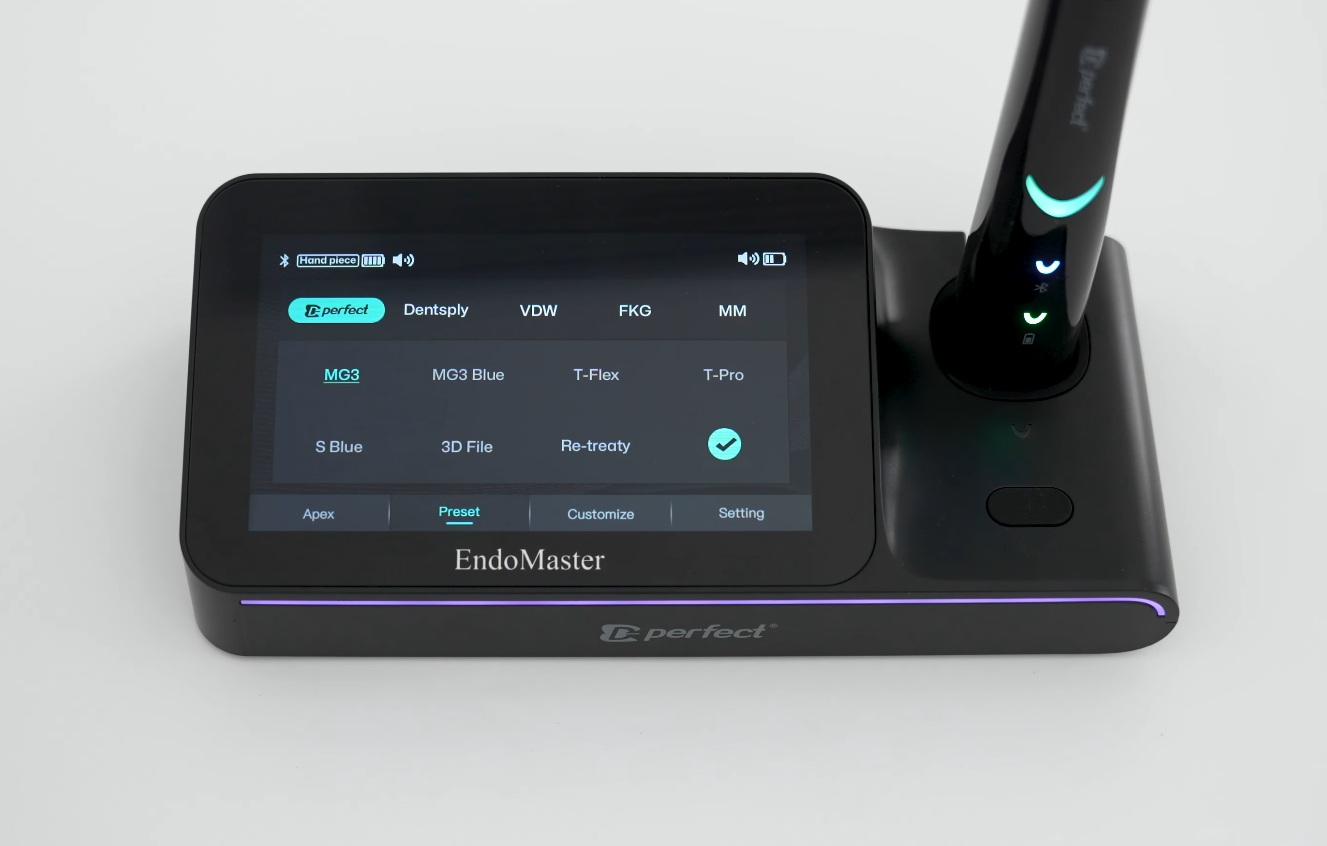

• Customisable preset system — store and recall file-system programs for faster chairside workflow
• Bluetooth, cordless handpiece — full wireless operation for unrestricted movement around the patient
• Long battery endurance — 3300mAh base battery and 1200mAh handpiece battery for extended clinical sessions
• Dynamic lighting & audible prompts — real-time visual and audio feedback during use
• Durable brushless design — low heat generation and low wear, rated for up to 10x the lifespan of a brushed motor

Technical Specifications

Pre-programmed settings for major brands' file systems, and an option to enter your own.

Who Is the EndoMaster For?

The EndoMaster is designed for general dental practices and endodontic specialists who want to streamline root canal treatment by combining an endo motor and apex locator into a single, cordless device. Its customisable file presets support most major rotary and reciprocating file systems, making it a versatile addition to any operatory.

Watch a demo video:

What's in the Box

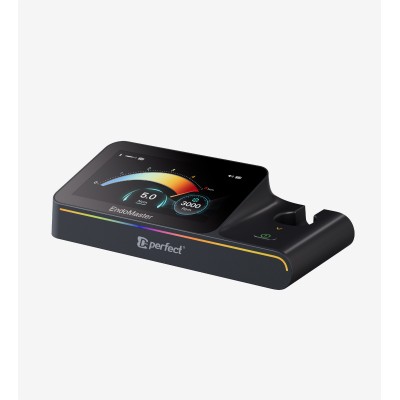

• EndoMaster base unit with 5.0" touch screen
• Cordless 6:1 handpiece
• Charging base and cables
• Apex locator accessories (lip clip and file clip)
• User manual

Frequently Asked Questions

Does the EndoMaster have a built-in apex locator?

Yes. The EndoMaster combines endodontic shaping and root canal length measurement in one device, with dedicated Shaping, Measurement, and Combined modes.

Is the EndoMaster handpiece cordless?

Yes. The handpiece connects to the base unit via Bluetooth for fully wireless operation during treatment.

What is the maximum speed and torque of the EndoMaster?

The EndoMaster runs from 100–3000 RPM with adjustable torque from 0.4–5.0 N·cm, suitable for a wide range of rotary and reciprocating file systems.

How long does the EndoMaster battery last on a charge?

The base unit uses a 3300mAh battery and the handpiece a 1200mAh battery, giving long clinical endurance; a full charge takes approximately 4 hours.
